Multifunctional Water Jet Cutter CNC Machine CNC Metal Cutting CNC Machine
  • Multifunctional Water Jet Cutter CNC Machine CNC Metal Cutting CNC Machine
  • Multifunctional Water Jet Cutter CNC Machine CNC Metal Cutting CNC Machine
  • Multifunctional Water Jet Cutter CNC Machine CNC Metal Cutting CNC Machine
  • Multifunctional Water Jet Cutter CNC Machine CNC Metal Cutting CNC Machine
  • Multifunctional Water Jet Cutter CNC Machine CNC Metal Cutting CNC Machine
  • Multifunctional Water Jet Cutter CNC Machine CNC Metal Cutting CNC Machine

Multifunctional Water Jet Cutter CNC Machine CNC Metal Cutting CNC Machine

Place of Origin China
Brand Name Yuanli, YUANLI
Product Details
Condition:
New
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
New Product 2020
Warranty Of Core Components:
1 Year
Core Components:
PLC, Motor, Pump
Voltage:
220V380V, 220V/380V/415V
Rated Power:
50/60HZ
Dimension(L*W*H):
4200*3600MM
Warranty:
12 Months, 12 Months
Weight (KG):
4250 KG
Applicable Industries:
Manufacturing Plant
Key Selling Points:
Multifunctional
Showroom Location:
Germany, Viet Nam, Indonesia, Spain
CNC Control System:
AC Servo System
Cutting Accuracy:
±0.1mm
Repeatability:
±0.01mm
Fast Positioning Accuracy:
±0.025mm
Power:
50/60HZ
Structure:
Cantilever
Traverse Angle:
6000 Mm/min
Port:
Guangzhou/Shenzhen
High Light:

multifunctional water jet cutter cnc

,

multifunctional metal cutting cnc machine

,

220v water jet cutter cnc

Payment & Shipping Terms
Price
$39,000.00 - $115,055.00/sets
Packaging Details
1.Whole film packaging machine.
2.All the spare parts of the machine were covered by some soft materials,mainly using pearl wool.Avoiding all damages that could happen in the delivery process.
3.Anti-collision package edge.
Supply Ability
100 Set/Sets per Month
Product Description

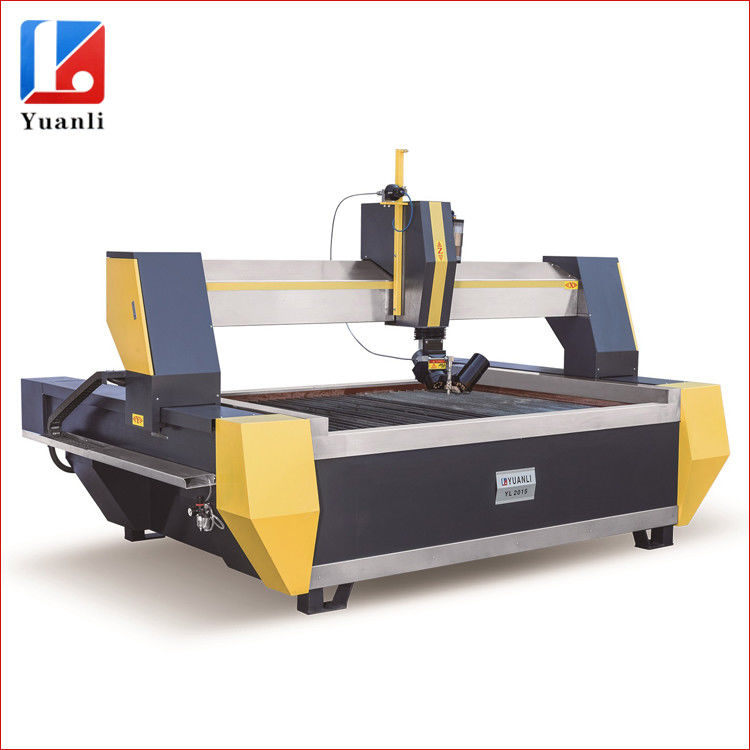

YUANLI YL3020 Water jet cutting machines prices metal CNC Waterjet Cutter



Features Of Product:

1. It has the cutting ability of full direction ,can carry out any plane curve cutting.

2.The structure of platfrom is specially reinforced,it will not be shaking when the cutting head is running,and the cutting speed is fast and the precision of machining is strong.

3.The screw mandrel and the lead rail are provided by taiwan's manufacturers,the X axis and the Y axis with the oil-immersed,it has the  effect of lubricating,with the structure of water-proof and dustproof,can make sure the machining precision of cutting platfrom,and improve the lifetime of the screw mandrel and lead rail.

4.The cutting head is equipped with the pneumatic water switch that can improve the productive efficiency.

5.The stainless steel protection cover is dust-proof,waterproof,rustproof,erosion proof,making the platform bright all year.

After-Sale Services

1.Installation and training: we can send technician to your place for the complete installation and training. The buyer must paid in advance for all the expense include travelling, visa, hotel, and meals etc.

Item  Water jet cutting machine
Model YL3020
Structure Cantilever
Cutting table size 4300*3000mm
Stroke X-axis 3000mm
  Y-axis 2000mm
  Z-axis 210mm
CNC Controller Step System / AC Servo System
Accuracy ±0.1mm
Cutting  Repeatability ±0.05mm
  Traverse speed 6500/15000 mm/min
Power supply 220V/380V/415V  AC,50Hz
Turbocharger parameters
Item  Waterjet cutting machine
Model
Maximum pressure 450Mpa
Normal operating pressure 350-380Mpa
Main motor power 37KW /30KW
Gantry Variable
Cooling Wind/Oil/Water
High-pressure cylinder Imported
Inlet valve Imported
Ceramic rod Imported
Accumulator Single taper
Power supply 415/380/220V AC 3P

Multifunctional Water Jet Cutter CNC Machine CNC Metal Cutting CNC Machine 0Multifunctional Water Jet Cutter CNC Machine CNC Metal Cutting CNC Machine 1

COMPANY PROFILE

Multifunctional Water Jet Cutter CNC Machine CNC Metal Cutting CNC Machine 2

Foshan Yuanli Precision Machinery Co.,LTD.was founded on 20th,May,2003 ISO certificated producing line,Our factory is located in Xiabai third Industrial Zone in Foshan with an advanced production base which covers an area of more than 4,000 square meters and around 150 employees.We are Professional waterjet cutting machine manufacturer,we can offer waterjet cutting machine system,3 Axis waterjet machine,5 axis waterjet cutting machine,double head 3 axis waterjet cutting machine.

CERTIFICATE

Multifunctional Water Jet Cutter CNC Machine CNC Metal Cutting CNC Machine 3

Market

Multifunctional Water Jet Cutter CNC Machine CNC Metal Cutting CNC Machine 4

FAQ

 Multifunctional Water Jet Cutter CNC Machine CNC Metal Cutting CNC Machine 5

Q: Are you a factory?
A: Yes, YUANLI is a comprehensive industrial Manufacturer Group. We are specialized in Waterjet cutting machine.

Q:What kind of package will use?

A:Whole film packaging machine.Anti-collision package edge.

Q: How to get the exact quotation?
A:We offer you suitable solutions and configurations according to your cutting workpieces.The best and exactly quotation.

Q:Could you give me a discount?
A:Yes, we can have a negotiation.

Q:Do you have other support?
A:Sure,we offer vulnerable accessories.

Q:How about your aftersale service?
A:We offer training and lifetime after-sales system.
